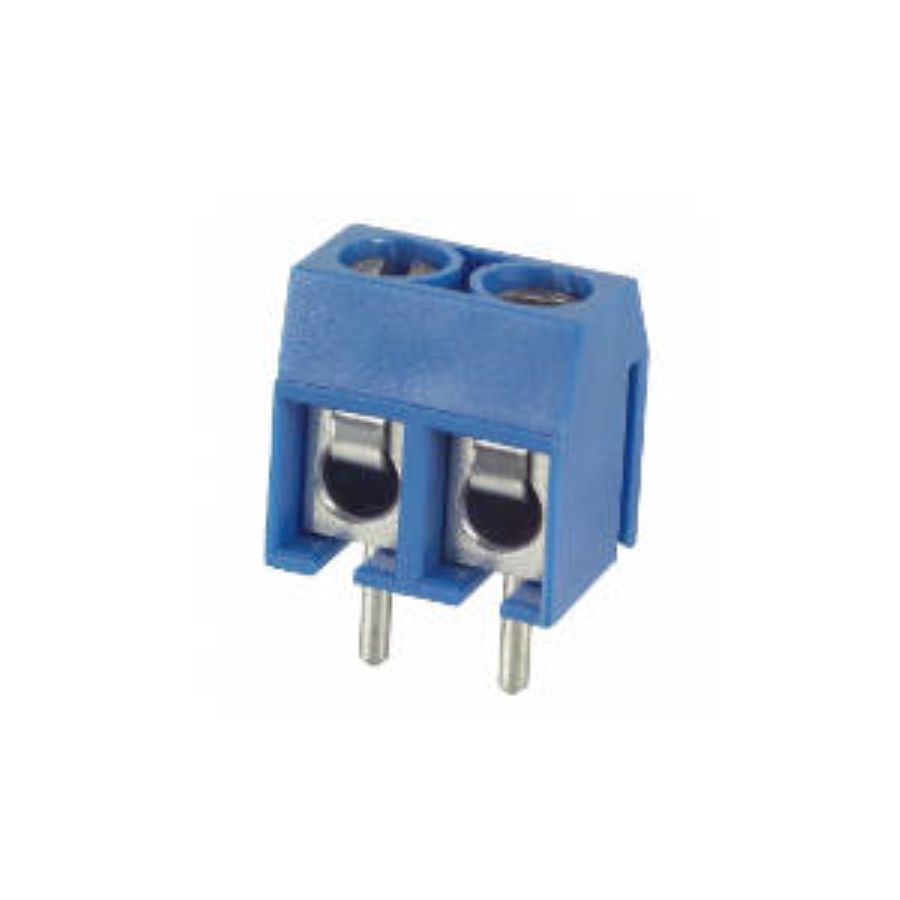

ED500/2DS
Manufacturer:
On Shore Technology
Mfr.Part #:
ED500/2DS
Datasheet:
Description:
Terminal Blocks Through Hole 2 5 mm 15 A 250 V 22 AWG to 14 AWG
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Width | 7.5 mm |
| Termination | Screw - Leaf Spring, Wire Guard |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 2 |
| Height | 10 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 5 mm |
| Voltage | 300 V |
| Contact Plating | Brass |
| Contact Material(Contact Finish) | Brass |
| Pitch | 5 mm |
| Current | 15 A |
| Current Rating | 15 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Horizontal with Board |
| Color | Blue |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 14 AWG |
| Housing Color | Blue |
| Plating | Steel |
| Connection Method | Screw |
| Wire Gauge Range | 22 AWG to 14 AWG |
Stock: 13073
Distributors
pcbx
pcbxUnit Price$0.55079
Ext.Price$0.55079
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.55079 | $0.55079 |
| 10 | $0.40734 | $4.07340 |
| 25 | $0.35465 | $8.86625 |
| 50 | $0.31973 | $15.98650 |
| 100 | $0.28938 | $28.93800 |
| 300 | $0.26165 | $78.49500 |
| 500 | $0.23658 | $118.29000 |
| 1000 | $0.22055 | $220.55000 |
| 3000 | $0.20735 | $622.05000 |
| 5000 | $0.19494 | $974.70000 |
